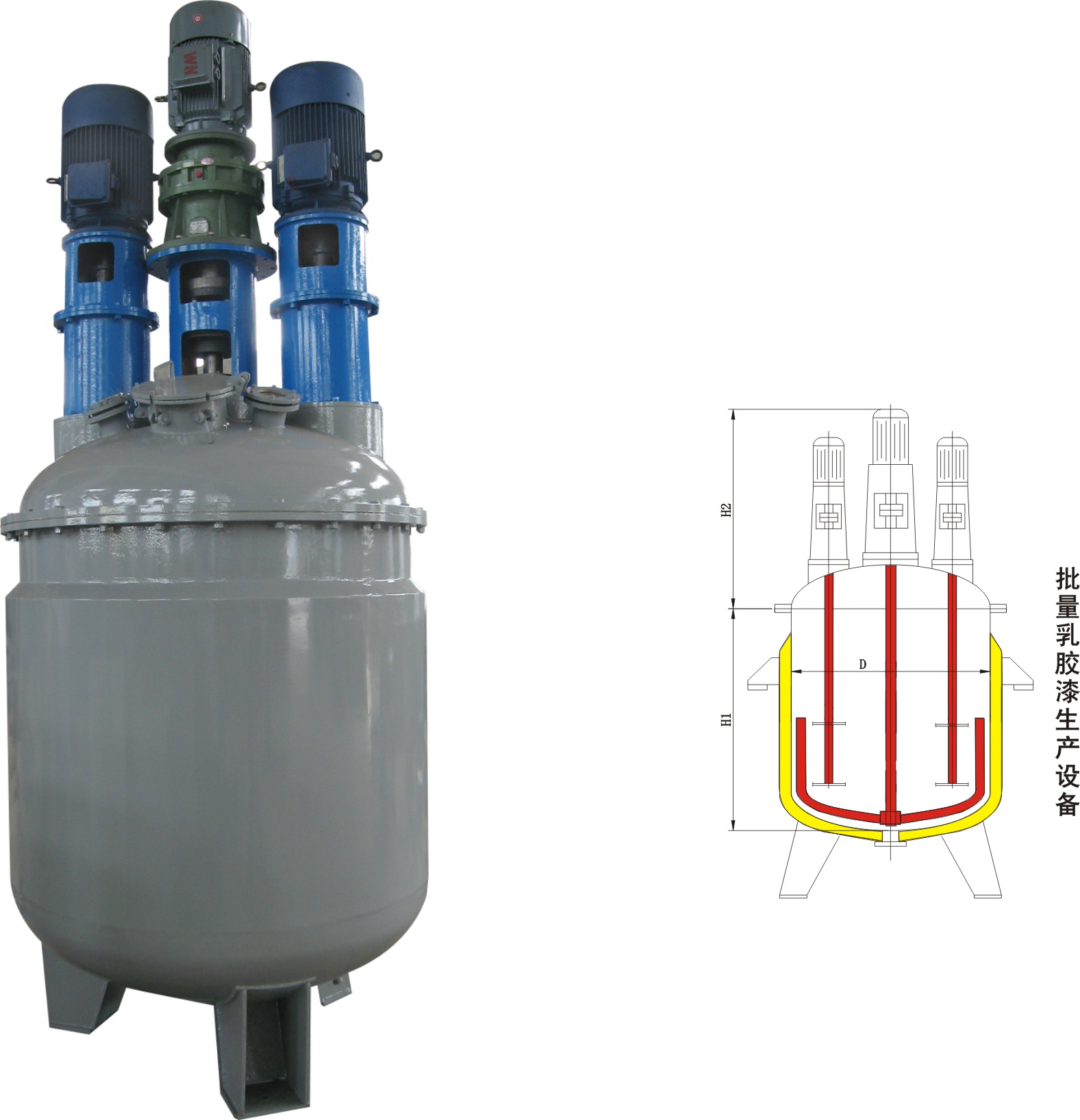

| Parameter\Model | FS2 | FS3 | FS5 | FS6 | FS8 | FS10 | FS12 |
| Capacity (m) | 2 | 3 | 5 | 6 | 8 | 10 | 12 |
| Mixing Power (Kw) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Mixing Speed (r/min) | 50 | 50 | 50 | 50 | 41 | 41 | 41 |
| Mixing Diameter (mm) | 1300 | 1500 | 1700 | 1700 | 1900 | 2100 | 2300 |
| Dispersion Speed (r/min) | 960/1450 | 960/1450 | 960/1450 | 960/1450 | 970/1470 | 970/1470 | 750/1480 |
| Dispersion Power (Kw) | 13/16 | 13/16 | 22/28 | 22/28 | 22/28 | 26/34 | 30/42 |
| No of Scattered Disk | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
| Dimension (D/mm) | 1400 | 1600 | 1800 | 1800 | 2000 | 2200 | 2400 |
| External (H1/mm) | 1650 | 1750 | 2048 | 2400 | 2800 | 2950 | 3100 |
| Dimension (H2/mm) | 1930 | 2000 | 2200 | 2200 | 2500 | 2570 | 2620 |
