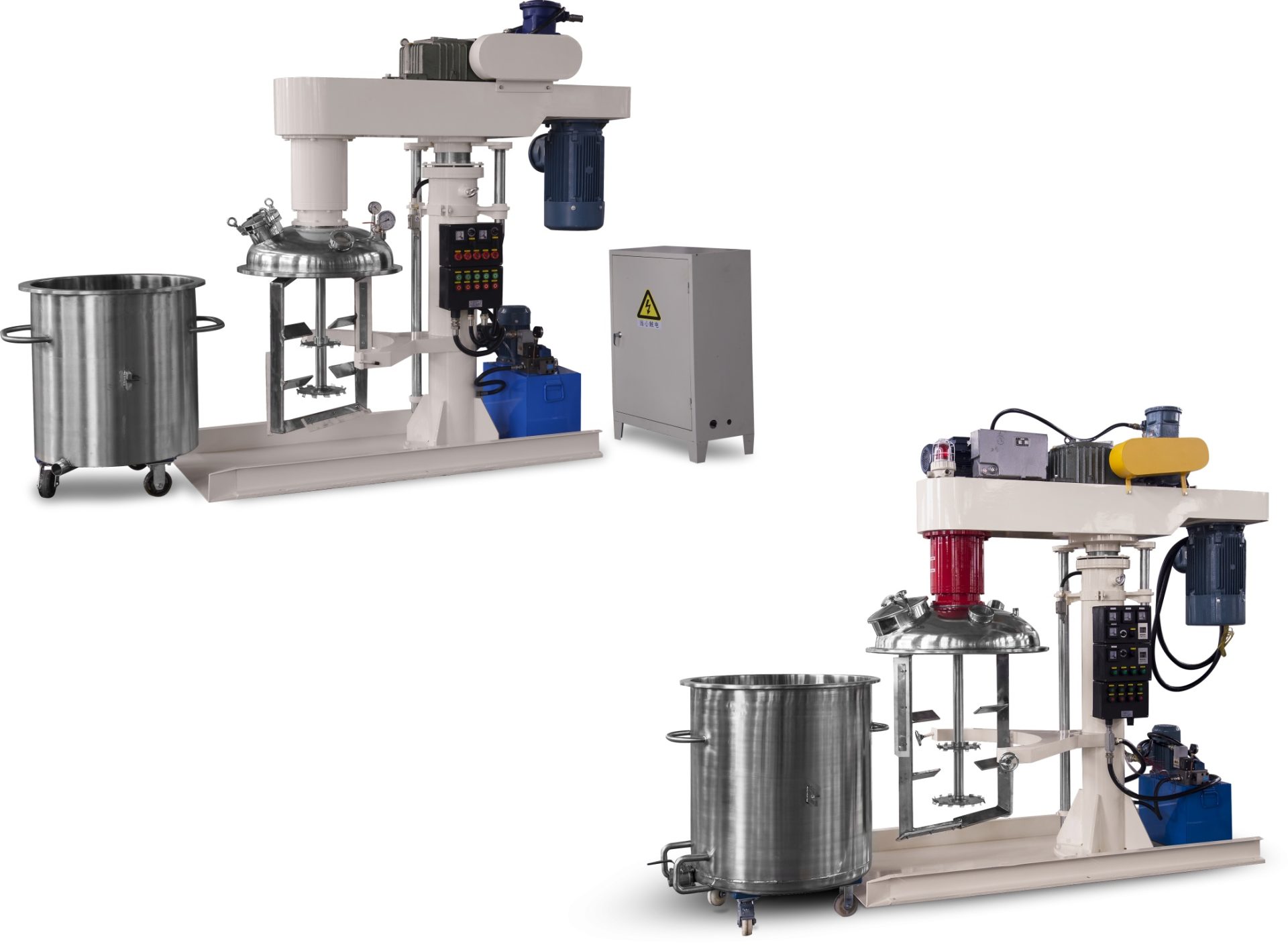

TXJ Vacuum Concentric Double-Shaft Mixer


It is applicable for stirring, mixing and dispersing of high-viscosity material, such as paint, ink and adhensive.

High-viscosity material could be dispersed with strong dispersing power through dispersing shaft which driven by stirring shaft to dispersing disc. Low speed stirring frame equip with reducer and scraper, the scraper could clean material on the wall of tank, leaving no dead corner inside of the tank. It could be vacuumized according to your demands, and eliminate air bubbles inside material.

Power Dispersing Shaft (kw)15/2222/3037/45
Diameter Of Dispersing Disc (@)250300350
Rotation Speed Dispersing Shaft (r/min)0-14000-14000-1400
Power of Low Speed Stirring Shaft (kw)7.5/1111/1515/22
Rotation Speed of Stirring Shaft (r/min)0-630-450-45
Volume of Tank (L)300600900
Weight (kg)120018002300
