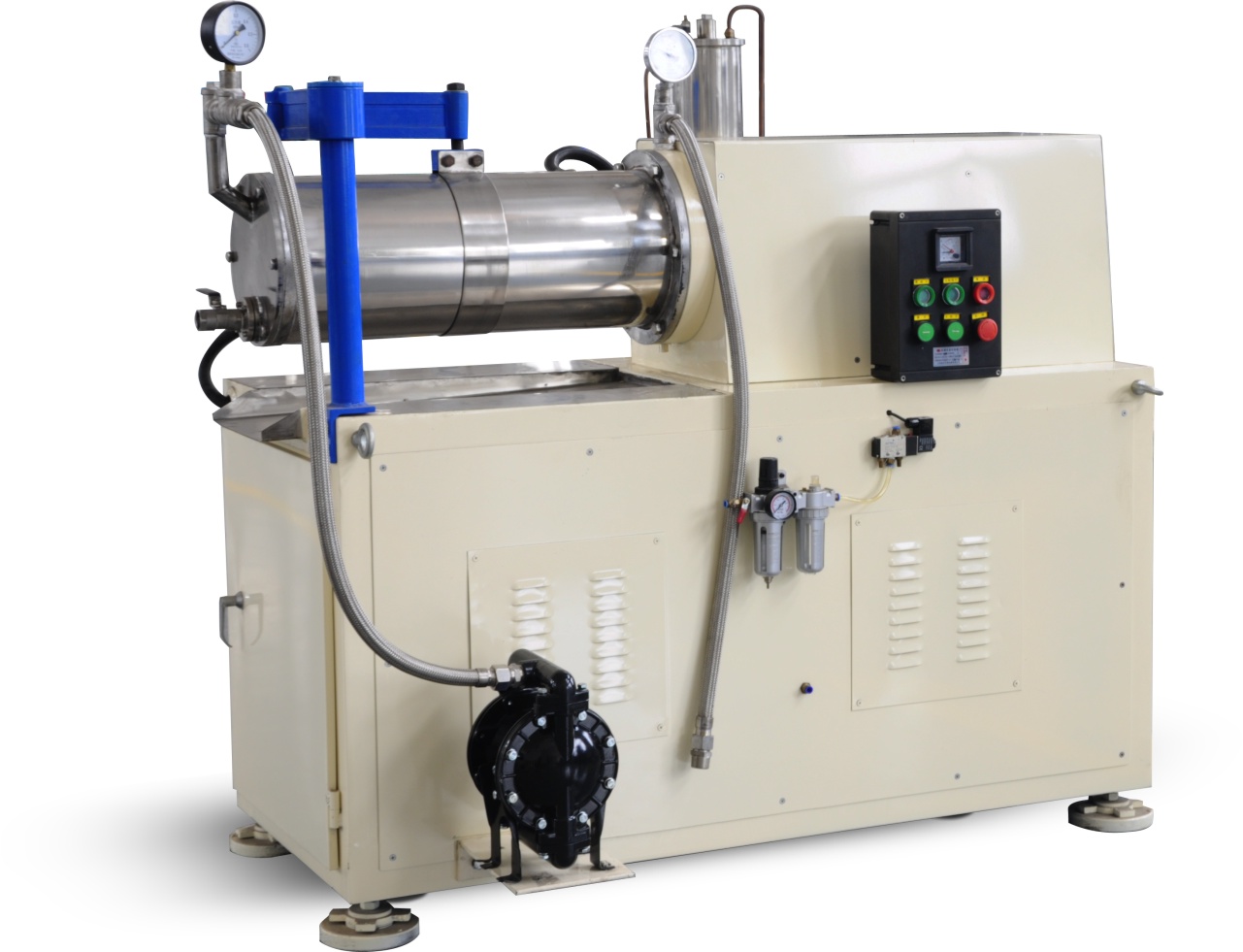

Main features of SW horizontal sand-grinding machine:
This machine is a most prevalent and well-sold horizontal grinding machine in the market now. It has a strong power of the collision and shearing to narrow the granules of the materials to the utmost in a short time and disperse the size of the materials evenly.
| Parameter / Model | SW-5 | SW-20 | SW-30 | SW-50 |
|---|---|---|---|---|
| Cylinder volume (L) | 5 | 20 | 30 | 50 |
| Motor power (kw) | 5.5 | 15 | 22 | 37 |
| Speed of dispersing shaft (r.p.m) | 1400 | 1280 | 1150 | 980 |
| Overall dimension (mm) | 1000 x 550 x 1050 | 1300 x 680 x 1150 | 1400 x 700 x 1200 | 1600 x 800 x 1250 |
| Weight (kg) | 350 | 900 | 1180 | 1500 |
| Loading of medium (kg) | 8 | 25 | 45 | 78 |
| Pressure of cooling water (mpa) | 0.2 | 0.2 | 0.2 | 0.2 |
| Viscosity of material (pa.s) | <3 | <0.3 | <3 | <3 |
| Final Fineness (um) | 1-15 | 1-15 | 1-15 | 1-15 |
| Pump flow (L/min) | 2-10 | 2-20 | 2-25 | 2-30 |
