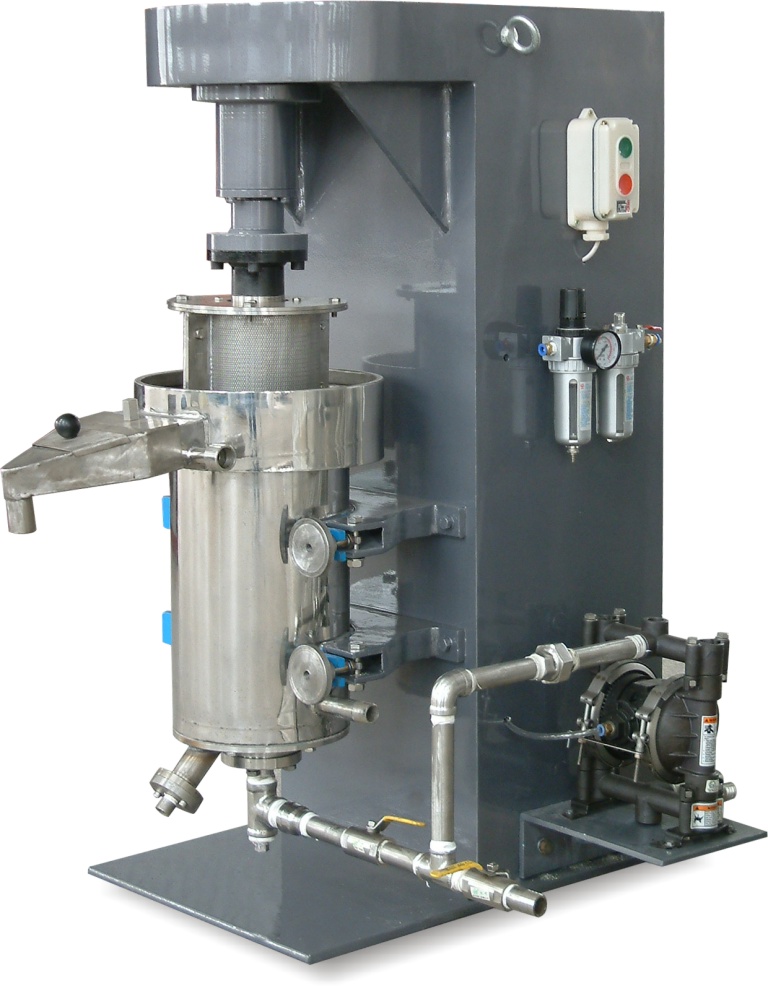

The machine is the most efficient and common-used equipment to grind the material finely. According to the request of different industries, the machine has been systematic researched and improved on technology, material and structure, which makes the grinding speed more fast, the fineness finer and the degree of discoloration smallest.
The machine has three types which are the common, strengthened wear-resisting and nonmetal coating types.
| Parameter \ Model | SK10-1 SB 10 | SK20-1 SB 20 | SK40-1 SB 40 | SK80-2A SB 80 | SB 250 |
|---|---|---|---|---|---|
| Volume (L) | 10 | 20 | 40 | 80 | 250 |
| Main power (kw) | 5.5 | 11 | 18.5 | 30 | 75 |
| Diaphragm pump diameter | 1 inch 25 | 1 inch 25 | 1 inch 25 | 1 inch 25 | 1.5 inch 40 |
| Dispersing shaft speed (r/min) | 1440 | 1320 | 1020 | 830 | 570 |
| Pump flow regulation scope (L/min) | 2~12 | 2~12 | 2~12 | 3~18 | 5~30 |
| Viscosity (pa.s) | <2 | <2 | <2 | <2 | ≤3 |
| Maximum output (kg/h) | 200 | 500 | 1000 | 1500 | 2800 |
| Dispersing particle size (u.m) | 1~20 | 1~20 | 1~20 | 1~20 | 1~20 |
| Weight (kg) | 550 | 1200 | 1500 | 2000 | 3500 |
