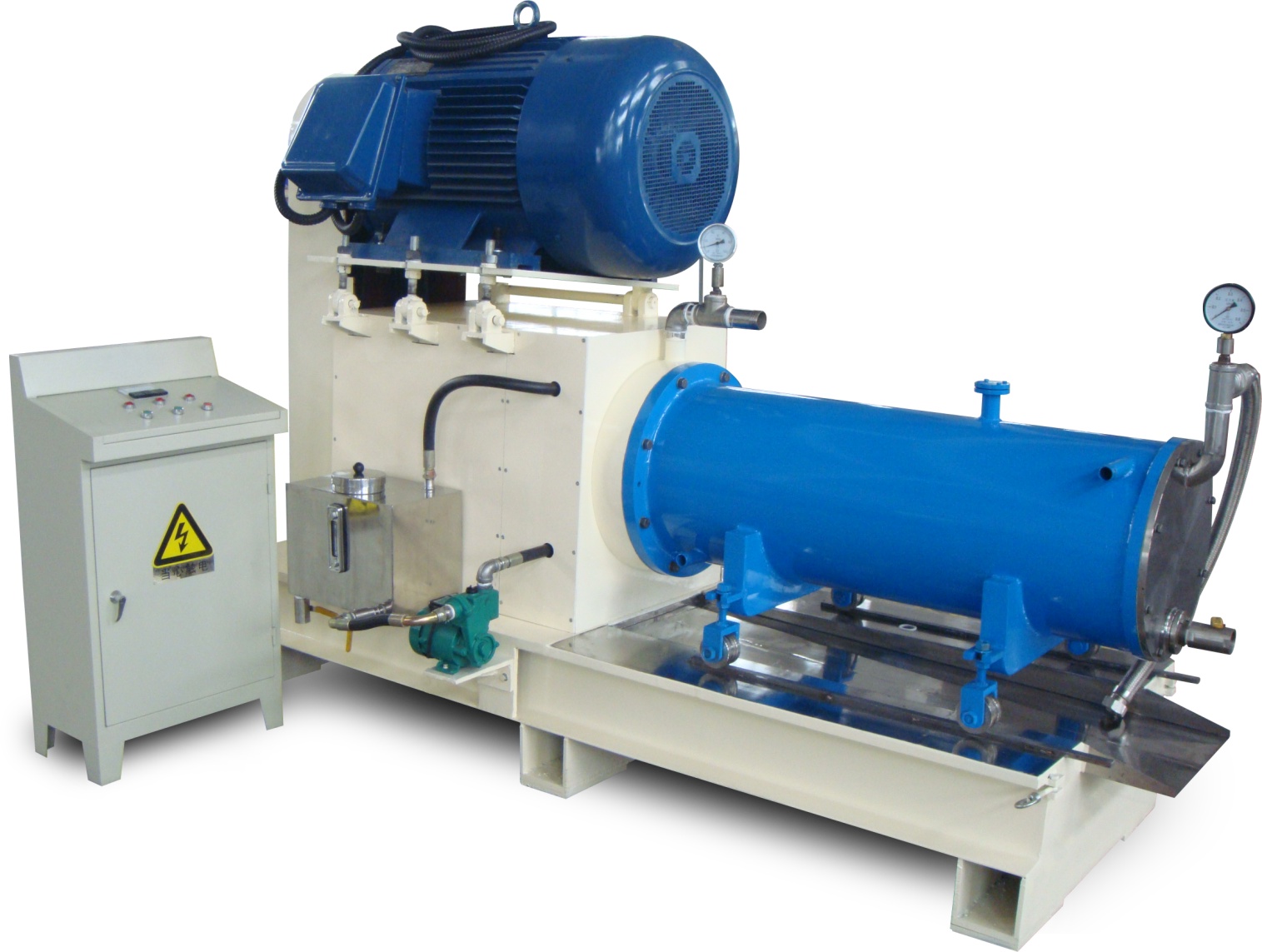

SW-Non Metallic Minerals Grinder


This machine is suitable for non metallic minerals sun as titanium pigment, kaolin, sericite.

Grinding chamber and disc are coated with polyurethane, which can protect the grinded material from pollution.

Parameter \ ModelSW-150SW-500
Power of Main Motor (kw)75160
Volume of grinding cylinder (L)150500
Speed (r/min)750600
Milling bead (mm)ɸ1.0~1.2ɸ1.0~1.2
Zirconium beads (kg) ≈ 250 ≈ 850
Maximum output (kg/h)10003500
Fineness (um)1-51-5
Weight (kg)40006000
