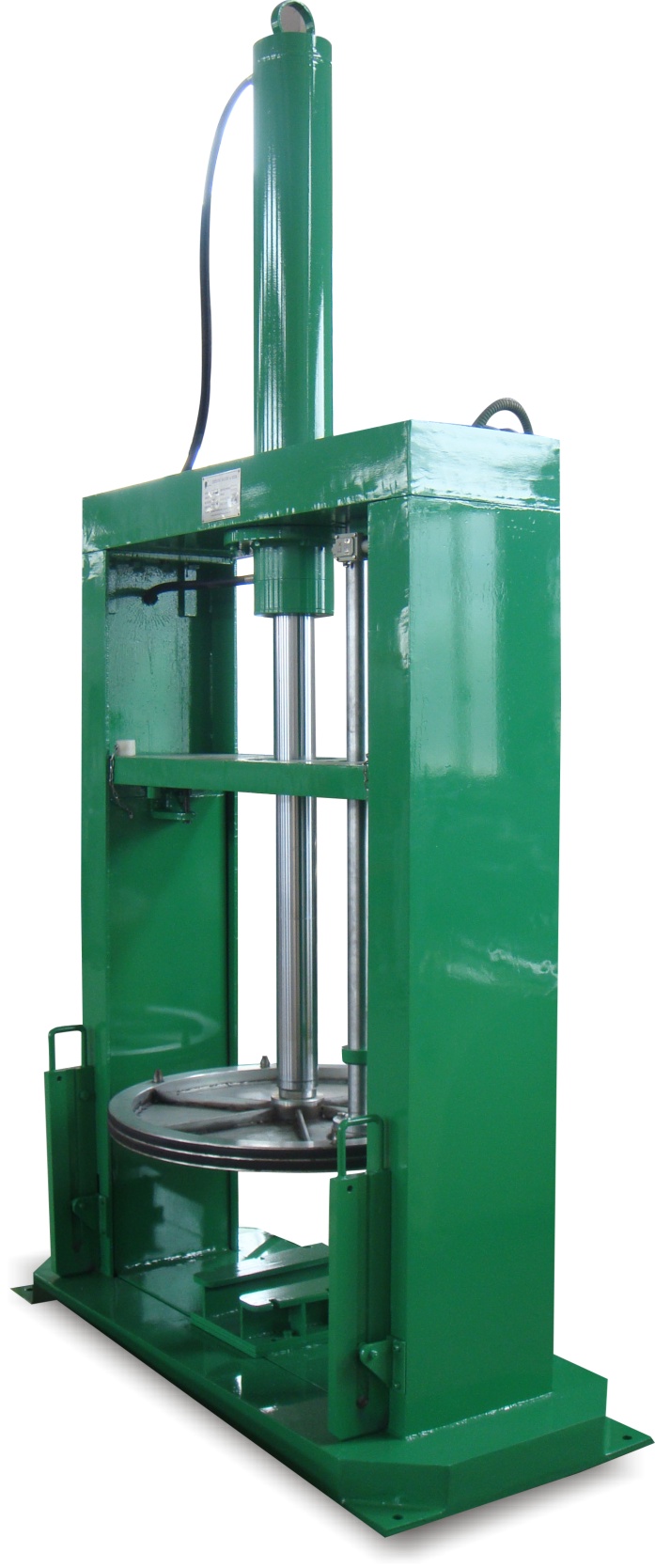

This machine is compatible with high-viscosity mixers, it consisted of frame ,hydraulic oil, hydraulic station. When use this machine, last step is to put the tank into the frame and fix, the extruding disc lift the frame and tank to the preseted height, and insert the transverse pin, then turn on the extruding disc and press down, press the extruding disc into tank, then press the material out from the bottom of tank.
| Model | Motor Power (kw) | Lift (mm) | Disc Diameter (mm) | Pressure (mpa) | Weight (kg) |
|---|---|---|---|---|---|
| JY-300 | 4kw | 800mm | φ650 | 22 | 1800 |
| JY-600 | 4kw | 1000mm | φ900 | 22 | 2000 |
| JY-900 | 4kw | 1200mm | φ1000 | 22 | 3500 |
